Description

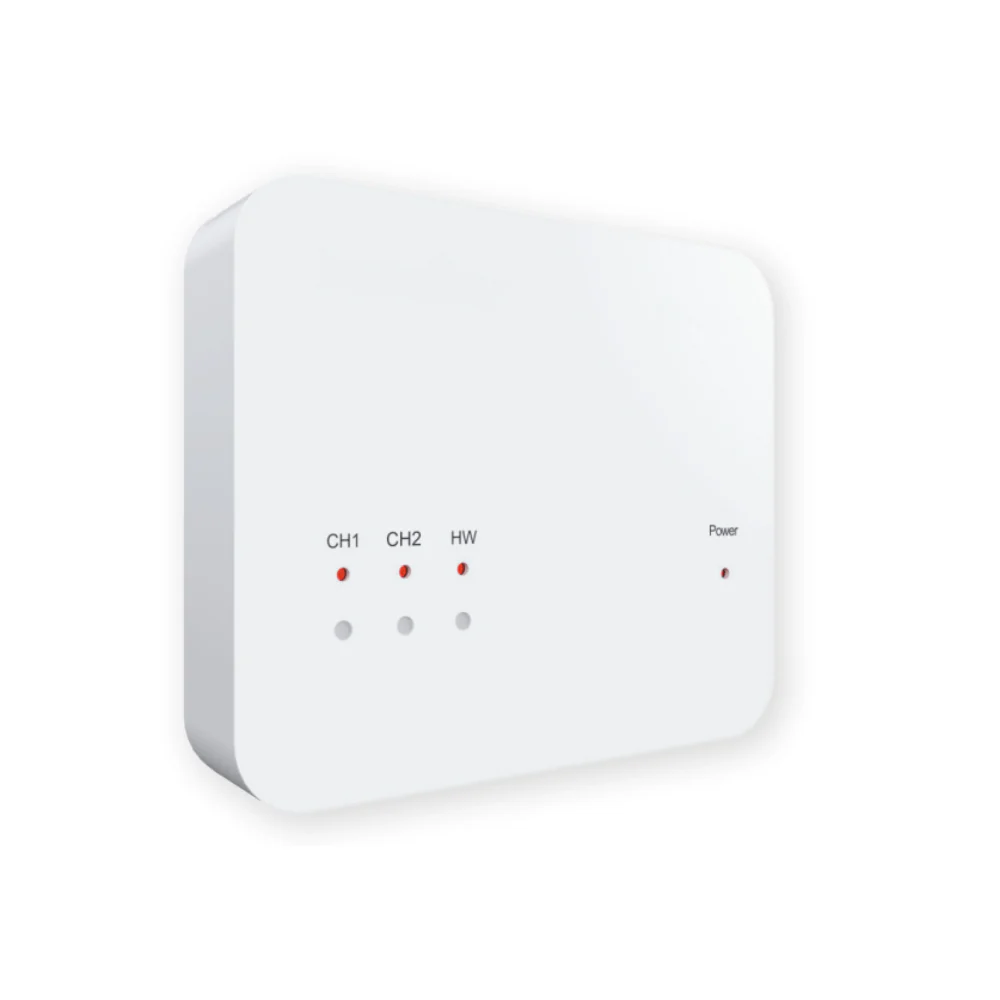

Heatmiser RF Switch V2 Wireless Receiver – 2 Heating Zones & Hot Water
The Heatmiser RF-Switch V2 Wireless Receiver is a reliable wireless heating control receiver designed to work with compatible Heatmiser RF thermostats and underfloor heating controls.
Featuring two independent heating channels and one hot water channel, the RF-Switch V2 provides a practical solution for controlling central heating, hot water and compatible wet underfloor heating systems.
The receiver can also be paired with a compatible Heatmiser UH8-RF wireless wiring centre to provide a wireless link between the heating controls and the boiler.
Key Features & Benefits
- Two Heating Zones – Independent outputs for two compatible heating circuits.
- Hot Water Control – Dedicated output for a hot water cylinder control system.
- Wireless Heating Control – Works with compatible Heatmiser wireless thermostats.
- Compatible with neoAir and Slimline-RF – Suitable for supported thermostat models.
- UH8-RF Compatibility – Can provide a wireless link to compatible Heatmiser wiring centres.
- 230V AC Power Supply – Mains-powered receiver for fixed installation.
- Surface-Mounted Design – Compact unit for convenient installation.
- LED Status Indicators – Clear indication of power and output operation.
- Volt-Free Relay Contacts – Suitable for integration with compatible heating controls.
- 868MHz RF Communication – Designed for reliable wireless operation.
Compatible Heatmiser Thermostats
The Heatmiser RF-Switch V2 receiver is compatible with a range of Heatmiser wireless heating controls, including:
- Heatmiser neoAir wireless thermostats
- Heatmiser Slimline-RF wireless thermostats
- Heatmiser UH8-RF and UH8-RF V2 wiring centres
Compatibility should be checked against the exact thermostat model and system configuration before installation.
Please note: This product is a wireless receiver only. A compatible thermostat or wireless wiring centre is required and is not included.
Control Heating and Hot Water

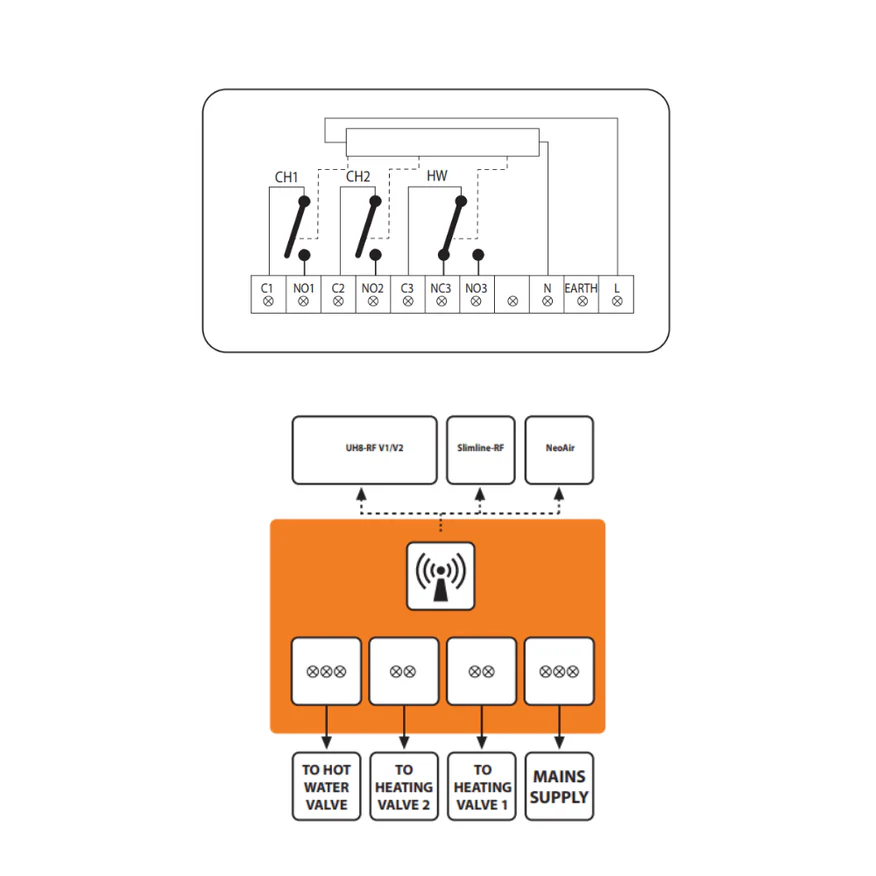

The RF-Switch V2 features two heating outputs and one hot water output, allowing it to control compatible heating equipment.
Depending on the installation, it can be configured to work with:
- Two separate heating zones
- One heating zone and a hot water cylinder
- Compatible wireless underfloor heating controls
- A Heatmiser UH8-RF V2 wiring centre for wireless boiler communication
This makes it a versatile choice for heating system upgrades and new installations.
Wireless Boiler Connection
When paired with a compatible Heatmiser UH8-RF V2 wiring centre, the RF-Switch V2 can provide a wireless connection between the wiring centre and the boiler control circuit.
This can help reduce the need for additional control cabling in suitable installations.
The receiver must still be connected to a 230V mains power supply and correctly wired to the heating equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Heatmiser |
| Model | RF-Switch V2 |
| Product Type | Wireless heating receiver |
| Heating Zones | 2 |
| Hot Water Zones | 1 |
| Supply Voltage | 230V AC, 50Hz |
| Wireless Frequency | 868MHz |
| Maximum Relay Load | 3A resistive per relay |
| Maximum Total Load | 9A resistive |
| IP Rating | IP20 |
| Mounting | Surface-mounted |
| Dimensions | 108 × 90 × 24mm |
| Compatible Controls | neoAir, Slimline-RF, UH8-RF |
| Thermostat Included | No |
Frequently Asked Questions
What does the Heatmiser RF-Switch V2 do?
The RF-Switch V2 receives wireless control signals from compatible Heatmiser thermostats or wiring centres and operates the connected heating or hot water equipment.
How many heating zones can the RF-Switch V2 control?
It supports up to two heating zones and one hot water zone, depending on the system configuration.
Is the RF-Switch V2 compatible with Heatmiser neoAir?
Yes. It is compatible with supported Heatmiser neoAir wireless thermostats, including neoAir V3.
Can I use the RF-Switch V2 with Slimline-RF?
Yes. It supports compatible Heatmiser Slimline-RF wireless thermostats.
Does the RF-Switch V2 require a neoHub?
No. A neoHub is not required for basic RF receiver operation. If smartphone control is required, a compatible smart thermostat and neoHub setup may be needed.
Does the receiver include a thermostat?
No. This listing is for the Heatmiser RF-Switch V2 wireless receiver only. Compatible thermostats are sold separately.
Why Choose the Heatmiser RF-Switch V2?
The Heatmiser RF-Switch V2 Wireless Receiver offers flexible wireless heating control with two heating channels, a hot water output and compatibility with popular Heatmiser wireless thermostats.
Whether you’re replacing an existing receiver or upgrading a heating control installation, it provides a practical solution for compatible central heating and wet underfloor heating systems.
