Description

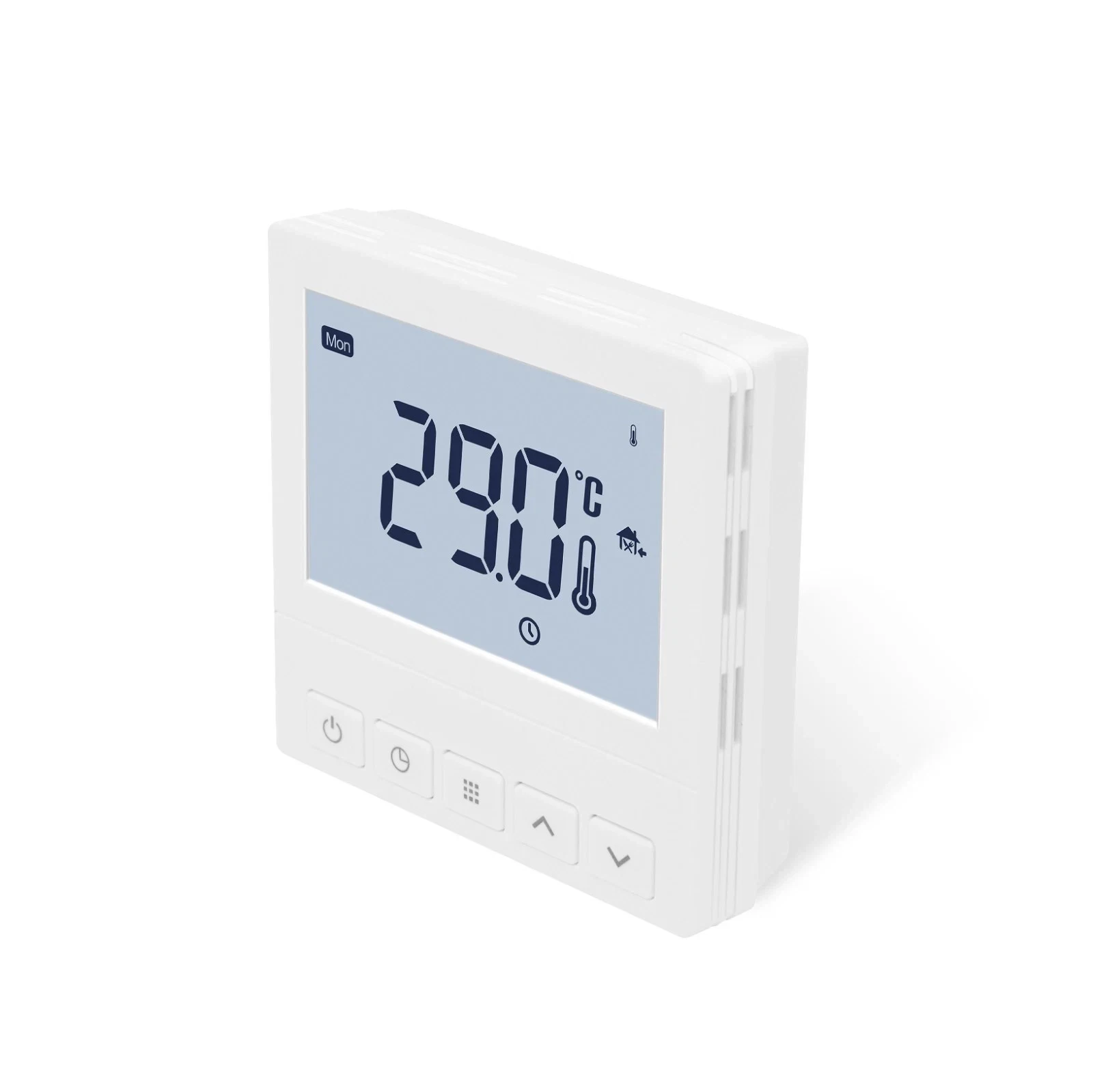

Wireless Thermostat RF Programmable for Underfloor Heating  (2 x AA battries included)

Wireless programmable thermostat powered by AA batteries, operating on 868MHz with up to 100m range. It supports 7-day programming and can control room temperature, floor temperature or both. It is designed to work with the RF  wiring centre for underfloor heating systems.

Main specifications

From the product technical data:

• Power supply: 2 × AA batteries
• Wireless frequency: 868 MHz
• Wireless range: up to 100 m (open space)
• Temperature setting range: 5°C – 40°C
• Display range: 5°C – 50°C
• External floor sensor range: 0°C – 90°C
• Accuracy: 0.1°C
• Size: 86 × 86 × 24 mm
• Installation: wall mounted or back box
• Programming: 7-day programmable
• Modes: Room / Floor / Room + Floor
• Functions: anti-freeze, holiday mode, low battery warning, memory after power loss

System compatibility

The thermostat works with the wireless control wiring center which can control:

• thermal actuators
• boiler
• pump
• up to 8 zones
