Description
Low profile Underfloor Heating Kit
PERT AL PERT 12mm pipe
Standard Output 150mm pipe spacing
Water Underfloor Heating Kit with Grundfos Pump and Temperature Mixing Unit
Key Features
- Supplied pre-mounted on installation brackets
- Connections are euroconus and a range of fittings are available to suit most UK pipe sizes
- Usual working temperature 82 C
- Max working temperature 105 C
- Max working pressure 3 bar
- Max test pressure 10 bar
- Easy Fitting
- Manufactured to highest standards to meet all UK and EU standards
- Pump Pack – Grundfos Pump with Mixer Blending Valve
- Grundfos A-rated Pump UPM3
- Mixer Set Blending Valve
- Thermostatic control the flow temperature of water to the underfloor heating pipe.
- Temperature range: 35C – 65C
- Max working pressure: 10 bar
- Compression type connections for ease of installation

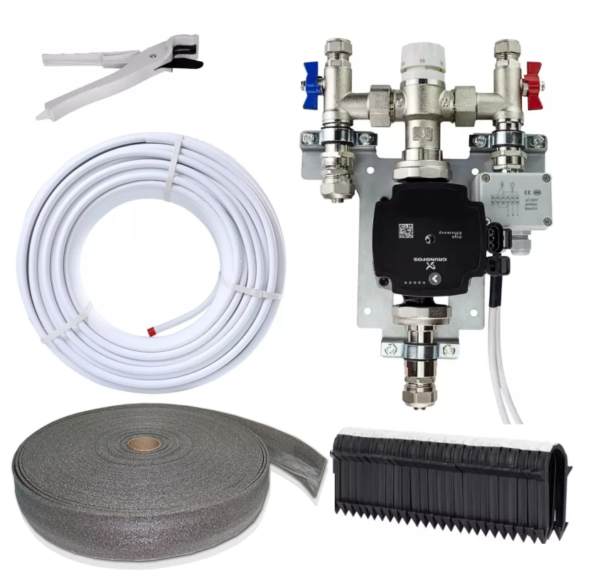

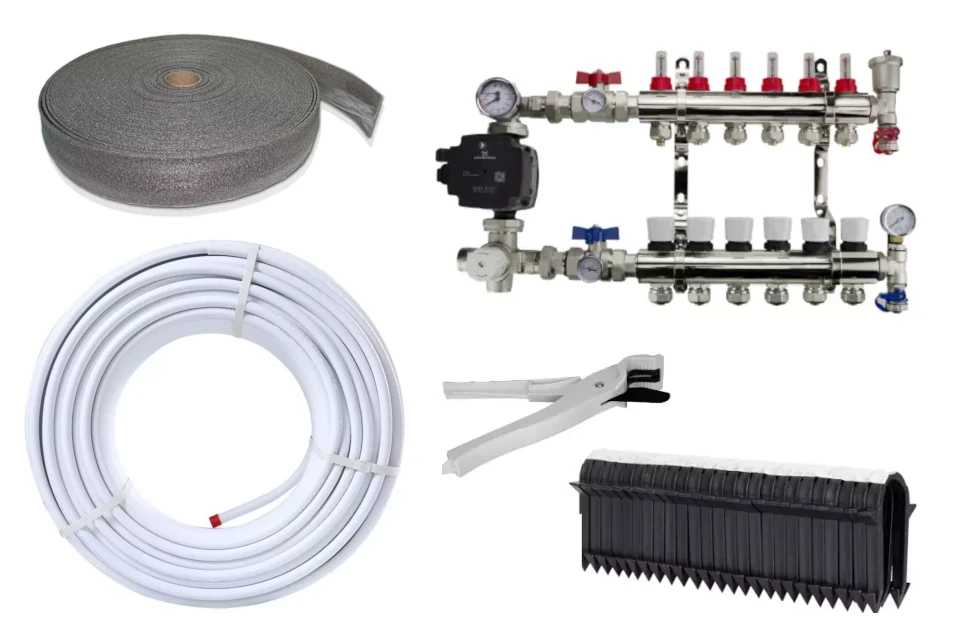

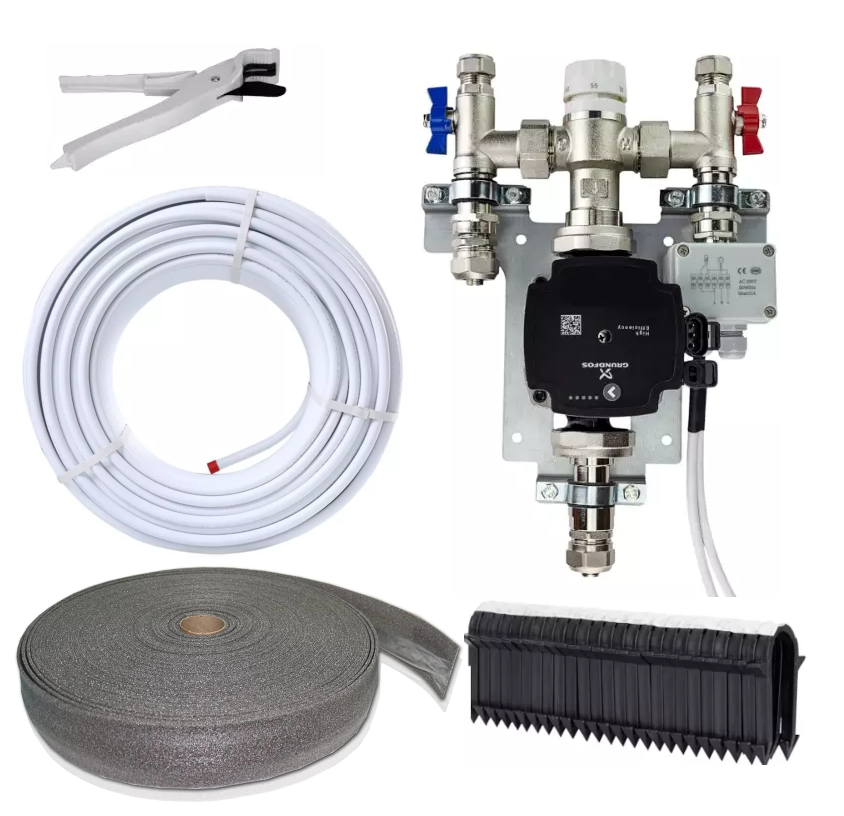

What included in the kit:
- Brass manifold – selected size.
- Grundfos Pump A’ rated with Temperature Control Mixing Unit.
- 12mm- 5 Multilayer PERT AL PERT Pipe
- Pipe Cutter.
- Pipe Staple Clips, compatible with tracker gun or use manually to clip
- Insulation edge roll.
Use the table to see what is included in your kit
| Area Size | Manifold Port(s) | Thermostatic Control | Grundfos Pump | No. of Connectors | Pipe Length | Pipe Clips | Edge insulation strip | Cutter |
| 10m² | 1 | yes | yes | 2 | 80m | 300 | 25m | yes |
| 15m² | 2 | yes | yes | 4 | 160m | 300 | 25m | yes |
| 20m² | 2 | yes | yes | 4 | 160m | 300 | 25m | yes |
| 30m² | 3 | yes | yes | 6 | 240m | 600 | 50m | yes |
| 40m² | 4 | yes | yes | 8 | 320m | 600 | 50m | yes |
| 50m² | 5 | yes | yes | 10 | 400m | 900 | 50m | yes |
| 60m² | 6 | yes | yes | 12 | 480m | 900 | 100m | yes |
| 70m² | 7 | yes | yes | 14 | 560m | 1200 | 100m | yes |
| 80m² | 8 | yes | yes | 16 | 640m | 1200 | 100m | yes |
| 90m² | 9 | yes | yes | 18 | 720m | 1500 | 100m | yes |
| 100m² | 10 | yes | yes | 20 | 800m | 1800 | 100m | yes |
