Description

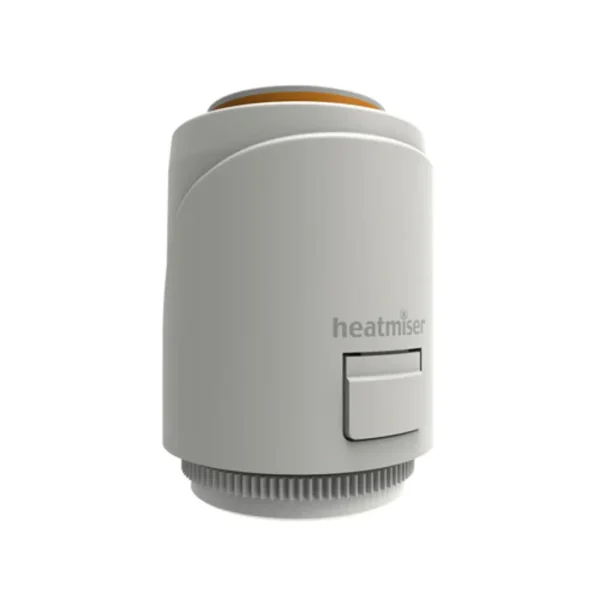

Heatmiser Underfloor Heating Thermal Actuator Valve 230V

The Heatmiser TA230 is a 230V, 2-wire thermal actuator designed to control individual valves on manifold systems, enabling precise regulation of underfloor heating across different rooms or zones.

Key Features:

• Power Supply: 230V AC
• Configuration: 2-wire, normally closed
• Thread Size: M30 x 1.5
• Stroke Length: 3.5mm ± 0.5mm
• Power Consumption: 2W
• IP Rating: IP54

For optimal integration, the TA230 actuator is typically connected to an underfloor heating wiring centre, such as the Heatmiser UH4 or UH8, facilitating centralized control and synchronization of the heating system.

Installation is straightforward: the actuator comes with a threaded ring nut (M30 x 1.5) that securely attaches to the manifold. The actuator then clips onto this ring nut, simplifying the process and reducing installation time.

By utilizing the Heatmiser TA230 thermal actuator, users can achieve efficient, reliable, and customizable control over their underfloor heating zones, enhancing overall comfort and energy efficiency.
