Description
Underfloor Heating Pipe Clips 40mm – Box of 300 Tacker Staples
40mm Pipe Clips for Water Underfloor Heating
Our 40mm Underfloor Heating Pipe Clips provide a quick and practical solution for securing water underfloor heating pipes to suitable insulation boards before screeding.
Designed for pipes with an outside diameter of 14mm to 20mm, these plastic tacker clips help keep UFH pipework securely positioned during installation.
The 40mm fixing length makes them particularly useful for installations where a shorter clip is appropriate for the insulation thickness and density.

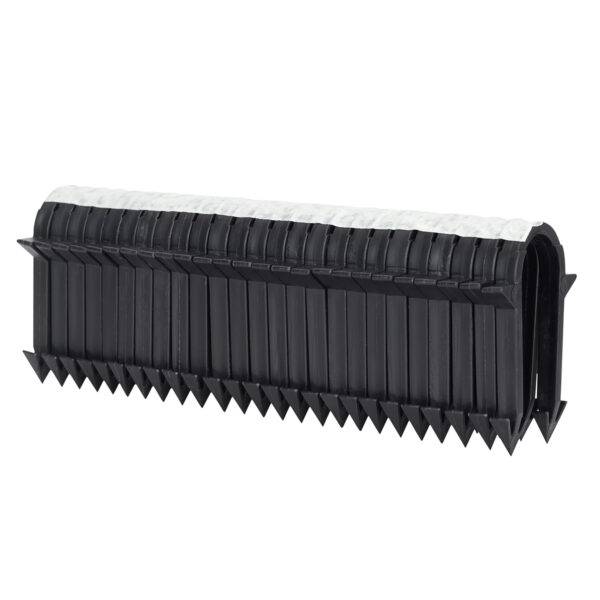

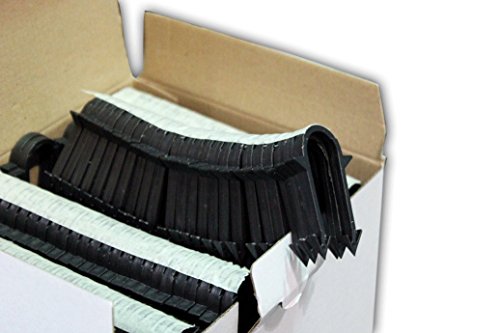

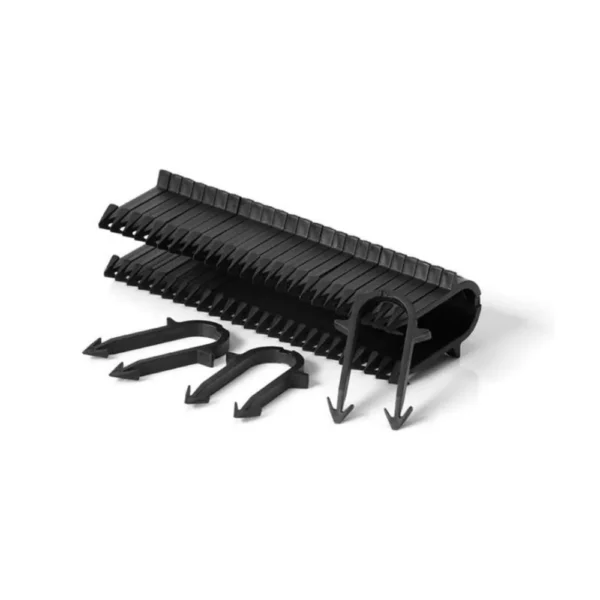

Supplied in a box of 300 clips, arranged in 25-clip cartridges with a paper strip, they are suitable for use with compatible underfloor heating tacker guns.
Key Features & Benefits

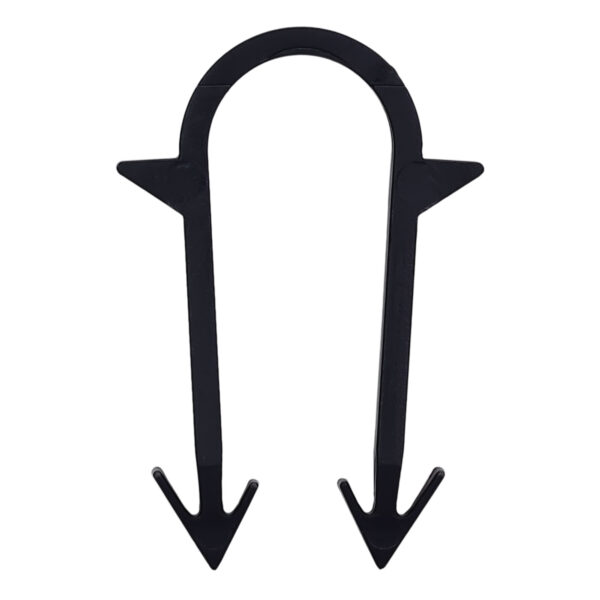

- 40mm Clip Length: Designed to secure underfloor heating pipes to suitable insulation.
- 14–20mm Pipe Compatibility: Suitable for common water underfloor heating pipe diameters, including 16mm.
- 300 Clips per Box: Convenient quantity for domestic and professional installations.
- 25-Clip Cartridges: Supplied in 12 cartridges for convenient handling and loading.
- Tacker Gun Compatible: Designed for use with suitable underfloor heating clip guns.
- Paper-Strip Connected: Keeps clips grouped together for efficient installation.
- Secure Pipe Positioning: Helps prevent pipework from moving before and during screeding.
- Suitable for Screeded UFH Systems: Ideal for compatible insulation-based water underfloor heating installations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Underfloor Heating Pipe Clips |
| Clip Length | 40mm |
| Compatible Pipe Diameter | 14–20mm |
| Quantity | 300 Clips |
| Clips per Cartridge | 25 |
| Cartridges per Box | 12 |
| Material | Plastic |
| Installation Tool | Compatible Tacker Gun |
| Application | Water Underfloor Heating |
| Installation Surface | Suitable Insulation Boards |
| Recommended Usage | Approximately 3 Clips per Metre |
How to Install 40mm Underfloor Heating Pipe Clips

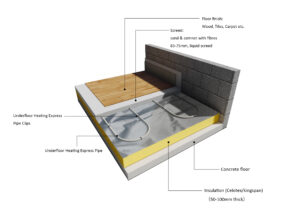

These 40mm UFH pipe staples are used to hold underfloor heating pipework in position on suitable insulation before the floor screed is applied.
- Prepare the Insulation: Ensure the insulation boards are correctly installed and suitable for pipe clips.
- Plan the Pipe Layout: Position the UFH pipe according to the required spacing and heating design.
- Load the Tacker Gun: Insert a cartridge of 40mm clips into a compatible clip gun.
- Secure the Pipe: Fix the pipe to the insulation at regular intervals.
- Add Extra Clips Around Bends: Use additional clips where necessary to prevent pipe movement.
- Check the Installation: Ensure the pipework is securely fixed and pressure-test the system according to the installation instructions before screeding.
How Many Underfloor Heating Pipe Clips Do I Need?
As a general guide, allow approximately 3 pipe clips per metre of underfloor heating pipe.
| Pipe Length | Approximate Clips Required |
|---|---|
| 50m | 150 clips |
| 80m | 240 clips |
| 100m | 300 clips |
| 150m | 450 clips |
| 200m | 600 clips |
A box of 300 clips can therefore secure approximately 100 metres of underfloor heating pipe, depending on the installation layout.
Additional clips may be required around bends, corners and changes in direction.
40mm vs 60mm Underfloor Heating Pipe Clips
Choosing the correct clip length depends on the insulation thickness, density and installation requirements.
40mm Pipe Clips
- Shorter fixing legs
- Suitable where the insulation provides sufficient grip at a shallower fixing depth
- Often used with thinner or denser insulation boards
60mm Pipe Clips
- Longer fixing legs
- Provide deeper penetration into suitable insulation
- Often preferred for thicker or softer insulation boards
Both sizes are designed to secure compatible underfloor heating pipes, but the appropriate clip length should be selected according to the insulation material and installation conditions.
Why Choose Our 40mm UFH Tacker Clips?
Whether you’re installing underfloor heating in a new build, extension or renovation, these 40mm underfloor heating pipe fixing clips provide a practical solution for securing pipework.
Their cartridge format allows convenient loading into a compatible tacker gun, helping installers work efficiently while maintaining the required pipe layout.
Why Buy from The Underfloor Heating Expert?
At The Underfloor Heating Expert, we supply a wide range of products for water underfloor heating installations throughout the UK.
Our range includes UFH pipes, manifolds, insulation boards, pipe clips, clip rails, thermostats and installation accessories.
Whether you’re a professional heating installer or planning a home renovation, our team can help you select suitable products for your project.
Order your box of 300 40mm Underfloor Heating Pipe Clips today.
