Description

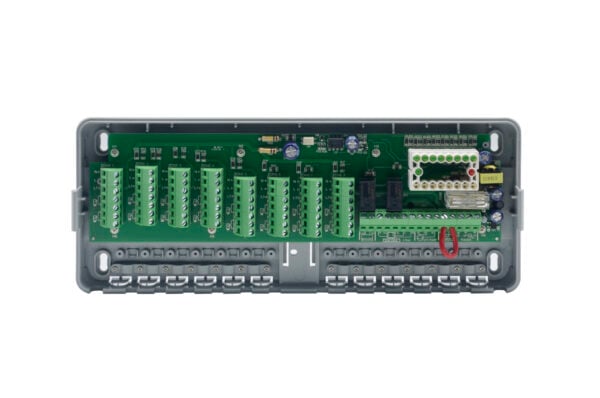

Wireless wiring centre works with wireless waterline floor heating control system. It can receive up to 8-loops control signal coming from 8 RF room thermostats and control 8 thermal actuator zone valves. Besides as a central control unit, it can control the boiler and the circulation pump, 2 port valve as well.

Specification:

Number of zone outputs: 8 zones

Power source 100－240VAC 50~60Hz

Max Load pumps and Thermal actuators 250VAC 10A

Boiler relay olt free signal. Max. 4A

Main pump relay 250VAC Max.4A

UFH valve relay 50VAC Max 3A

Thermal actuator 8X230VAC, Max 2A per output, Max 5A in total.

Operation temperature -20°C ~ 60°C

Storage temperature 20°C ~ 70°C

Radio communication mode Half-duplex

Frequency band 868MHZ（FSK）

Valid receiving distance 100m

Dimensions 280mm X 110mm X40mm

Guaranty 2 years
