Description
Specification:
- Number of zone outputs: 8 zones
- Supply voltage 230V, 50/60Hz
- Output voltage 230V, 50/60Hz
- UFH PUMP: max 5(3)A output
- ZONE Valve: max 3(2)A output BOILER: passive output for boiler max 2(1)A 250V OUTPUT
- Left Hand: 1 x potential free relay output
- Right Hand: 1 x independent relay output (230Vac, 3A)
- Two relays will be engaged whenever one or more thermostats stop heating activity
- Ambient temperature 0°C – 50°C
Dimensions 280mm X 110mm X40mm
Guaranty 2 years

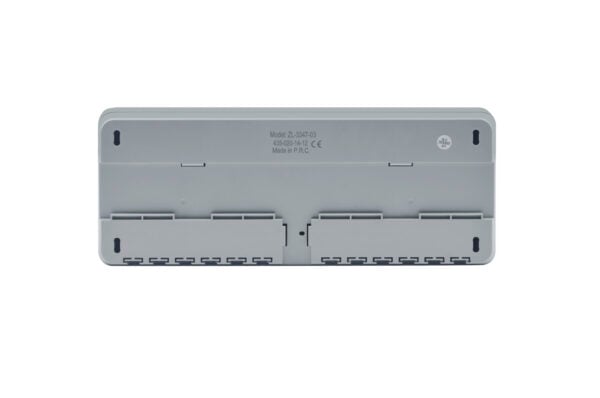

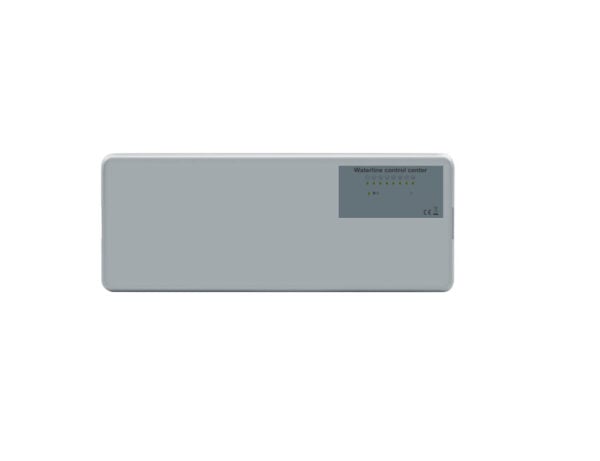

8 Zones Wiring Centre – 230V
Product Overview:
An 8-zone wiring centre is a crucial component for managing underfloor heating systems or other multi-zone heating setups. It simplifies the wiring and control of multiple zones, ensuring efficient heating system management.
Key Features:
- Zones: Supports up to 8 heating zones, allowing independent control of each zone.
- Voltage: Operates at 230V, suitable for standard electrical systems.
- Thermostat Connections: Compatible with multiple room thermostats (wired or wireless depending on model).
- Actuator Control: Designed to control thermal actuators for each zone, ensuring precise flow regulation in underfloor heating systems.
- Pump/Boiler Control:
- Built-in relay for pump control.
- Optional connection to the boiler for centralized control.
- Indicator Lights: LED indicators for quick identification of active zones and power status.
- Cable Management: Clearly labeled terminals for easy and organized installation.
- Mounting: Wall-mountable design for easy integration into your heating system.
Applications:
- Ideal for underfloor heating systems in residential or commercial properties.
- Suitable for multi-zone heating management in buildings requiring independent temperature control in separate rooms or areas.
Advantages:
- Energy Efficiency: Precise zone control reduces energy waste and optimizes comfort.
- Ease of Use: User-friendly design with labeled connections and LEDs for easy monitoring.
- Scalability: Expandable with additional wiring centres for larger systems.
